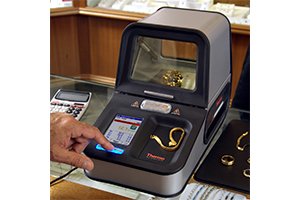

Thermo Scientific Niton DXL Precious Metal Analyzer
The Thermo Scientific Niton DXL desktop x-ray lab delivers fast and accurate XRF-based precious metal analysis results in an elegantly designed system. Whether you are a retail jeweler, pawn shop, jewelry manufacturer, or otherwise involved in the business of buying and recycling scrap jewelry, you can take advantage of superior performance in a compact footprint – confident that your operations are backed by the world leader in serving science and pioneer in portable XRF technology.
| Thermo Scientific Niton DXL Precious Metal Analyzer Specifications | |
|---|---|
| Weight | 17 lbs (7.7kg) |
| Outside Dimensions | 15.6 d x 8.1 w x 10.4 h in. (396 x 206 x 265 mm) |
| Test Chamber Dimensions | 6.9 d x 7.2 w x 5.2 h in. (172 x 184 x 133 mm) |
| Tube | Ag anode 45 kV maximum, 80 μA maximum |
| Detector | High-performance Si-PIN semiconductor |
| System Electronics | 400 MHz ARM 11 CPU 300 MHz dedicated DSP 80 MHz ASICS DSP for signal processing 4096 channel MCA 64 MB internal system memory/ 128 MB internal user storage |
| Display | Color touch-screen display |
| Standard Analytical Range | 21 elements including all precious metals |
| Data Storage | Internal >10,000 readings with spectra |
| Data Transfer | USB |
| Security | Password-protected user security |
| Data Entry | Touch-screen keyboard User-programmable pick lists |
| Standard Features and Accessories | One 7.2V 4-cell lithium-ion battery pack (charges in the instrument while on external power) 110/220V AC adapter USB PC connection cable Niton Data Transfer (NDT™) PC software 8 mm measurement area Internal CCD camera for precise sample positioning Adhesive Tack for stabilization of samples Spare puncture-resistant x-ray windows |
| Optional Features and Accessories | 3 mm small-spot focus feature Additional battery pack External battery charger Locking shielded carrying case |
| Licensing/Registration | Varies by region. Contact your local distributor |
| Compliance | CE, RoHS |
